Gas Analysers

Gas Analysers

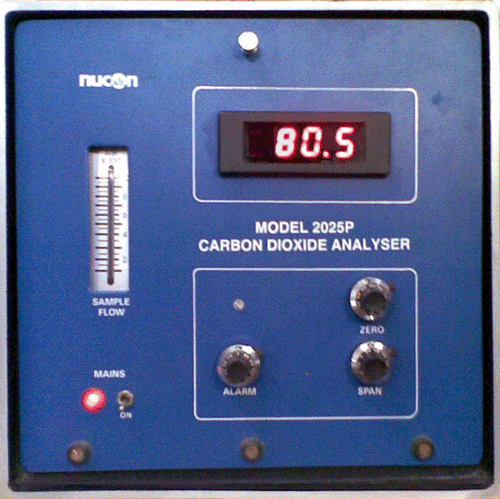

Infra Red Gas Analysers

Series 2000

NUCON SERIES 2000 are specific Gas Analysers based on Absorption in the Infra Red region. Specific models are offered for following gases :

  • Carbon Dioxide (CO2)
  • Carbon Monoxide (CO)
  • Methane (CH4)
  • General Hydrocarbons
  • Nitrous Oxide
  • Ammonia (NH3)
  • Hexane
  • Refrigerants (Freons/ HCFC/ CFC)
They cover the range 0.001 to 100.0% in various models and provide spot check or continuous analysis in laboratory, open areas or in industrial gas streams. They are available in both Bench Top and Panel Mounting versions. It requires no periodic maintenance and is non-depleting type i.e. no consumables are required. The output is available on a digital readout. Recorder terminals are provided on back panel. The Panel Mounting versions have set alarm facility available on a ten turn direct reading dial.
For more details...

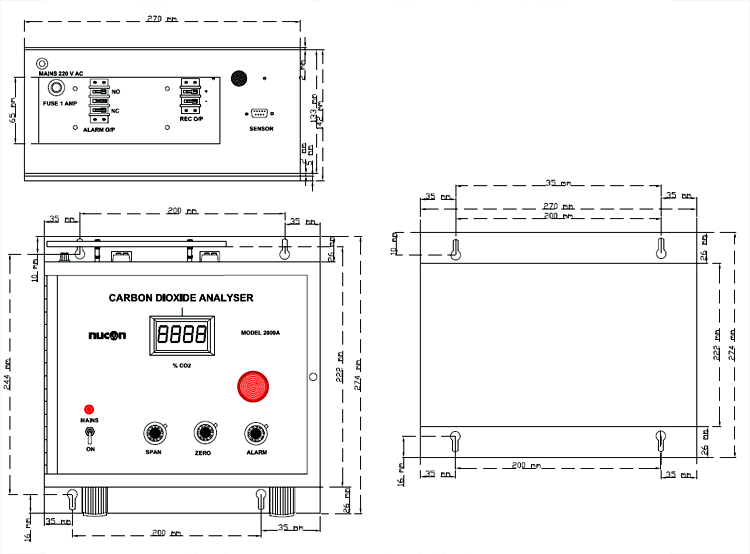

Atmospheric Monitor

NUCON has developed a range of Atmospheric Monitors that continuously monitors non-desirable gases in atmosphere by means of specific Diffusion Sensors. Gases that can be monitored are as follows :

  • Methane(CH4)
  • Propane
  • Carbon Dioxide(CO2)
  • Other Gases Available On Request
The output is available on a Digital Display as well as a 4-20 mA retransmission signal (standard) or 0-1 V DC signal (on request). User can also set an Alarm HI or LO over the entire range of monitoring. A high intensity buzzer is installed for Audio Alarm.

The instrument requires 220 V AC power (optional 100 V AC on request). It has an acrylic cover for safety and dust protection. It can be Wall Mounted or can be used as Table Top System.
For more details...
