Gas Analysers |
Percent Oxygen Analyser |
|
|
|
|

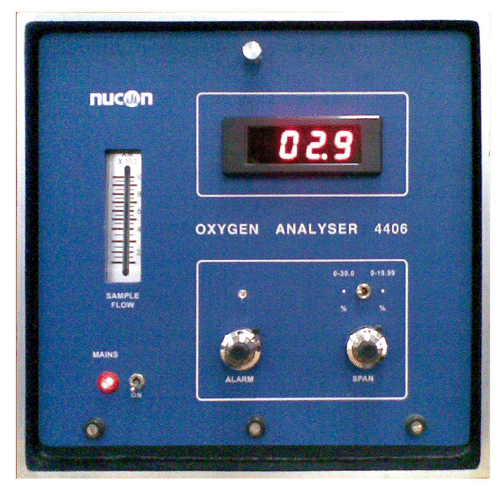

The NUCON SERIES 4000 PROCESS / ONLINE OXYGEN ANALYSER covers the range
0.01% to 100% and provide continuous analysis of oxygen in industries
gas streams. These are Panel Mounted instruments; with optional back
stand can also be used for Bench Top applications. The transducer is a
sealed electrochemical fuel cell. It can be calibrated using ambient
air or standard samples. The output is available on a digital readout
with a resolution of 0.1% or 0.01% depending upon the model. Recorder
terminals are provided on back panel. |
|
For more details...  |
|
|
|
|
|
|

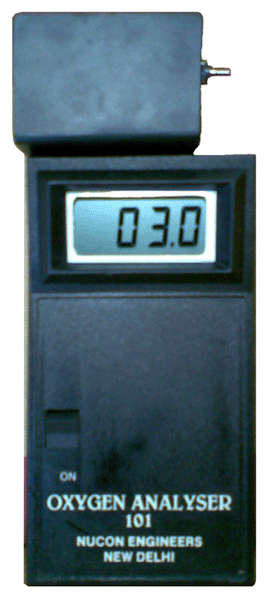

NUCON SERIES 100 PORTABLE OXYGEN ANALYSERS are designed for accurate and
reliable measurement of oxygen in Air, Nitrogen, Argon, Hydrogen, etc.
These are based on state of art Galvanic Oxygen Sensors and provide
fast response. The Power Source is a 9V battery. Models 101, 101-D,
101-H and 101-A covers Standard, High Resolution, High Range and
Atmospheric applications |
|
For more details... |
|
|
|
|
|
|

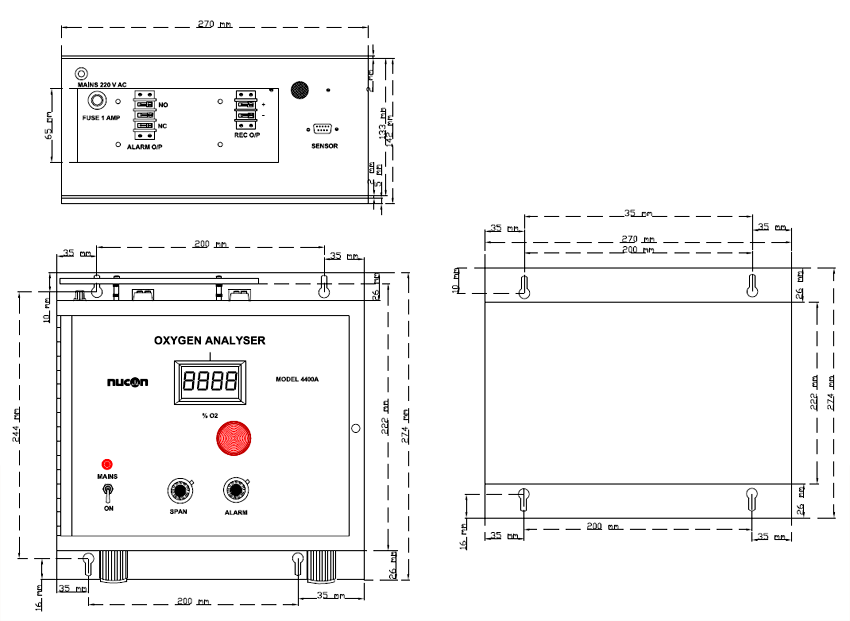

NUCON has developed a range of Atmospheric Monitors that continuously
monitors oxygen content in atmosphere by means of specific Diffusion
Sensors. The output is available on a Digital Display as well as a 4-20
mA retransmission signal (standard) or 0-1 V DC signal (on request).
User can also set an Alarm HI or LO over the entire range of
monitoring. A high intensity buzzer is installed for Audio Alarm.
The instrument requires 220 V AC power (optional 100 V AC on request).
It has an acrylic cover for safety and dust protection. It can be Wall
Mounted or can be used as Table Top System. |
|
For more details... |
|
|
